Get to know Millenium3

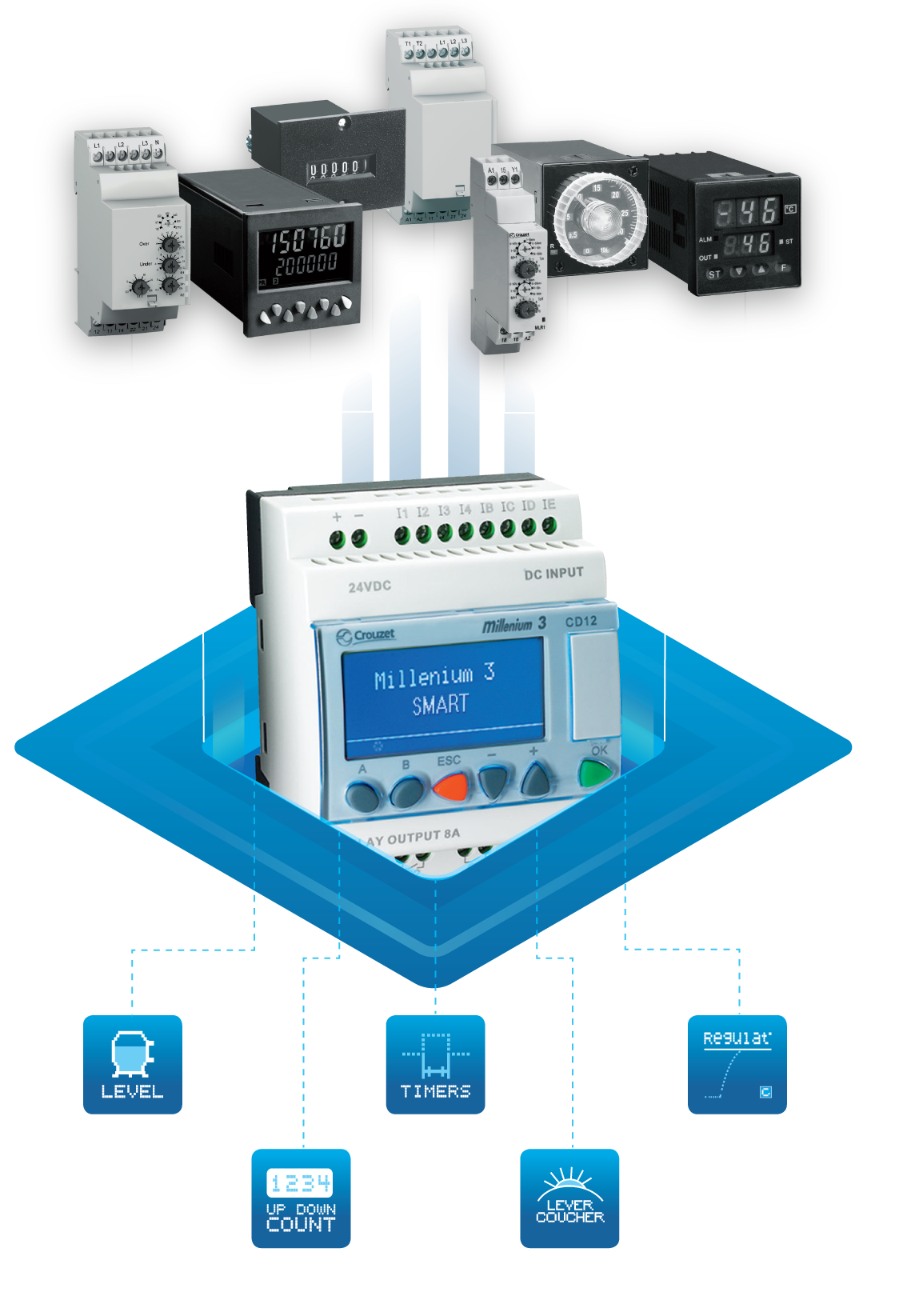

Many functions in one product

Monitoring, timing, counting, temperature control, level control
and way more...

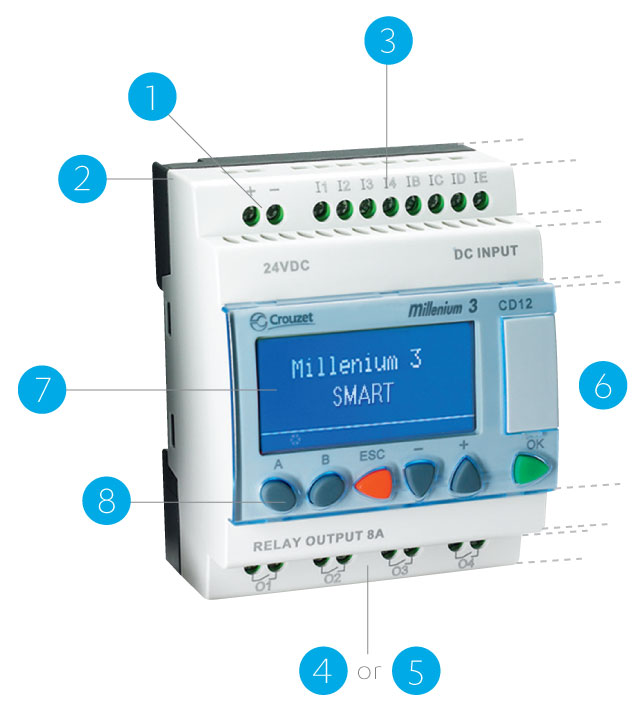

Millenium 3 layout

1 Power Supply: 12VDC, 24VDC, 24VAC, 100-240VAC

2 Smart Design: Adapted for modular panels, can be DIN-rail mount or panel mount.

3 Digital and Analog Inputs:

  • Digital up to 20Hz
  • 0 to 10V or VCC: to control with direct voltage or potentiometers
  • LDR: direct connection of LDR light sensors
  • NTC: direct connection of NTC temperature probes

4 Relay Outputs: Standard 8A outputs

5 Static PWM Outputs: For DC motor speed control, AC drives

6 Expand up to 50 I/Os: Expand your applications

7 Embedded Highly Visible Screen: Good visualization - Bright blue screen or classic

8 Programmable Buttons: Each button can be configured for a different function. Use front face button to execute action manually

M3 Soft: the easiest programming software to use on the market

Key Features

Simple

  • Quick, simple and intuitive programming requires no specialist knowledge
  • Self-teaching made easier thanks to a user-friendly online help guide and programming examples
  • A simulation mode that consistently represents controller operation

Powerful

  • A complete range of basic functions: counting, timing, comparison, display, logic, gain, sin/cos, etc are also available
  • A wide range of dedicated functions: pump rotation, PID regulation, movement, pressure, level, water ratio, solar tracking, and flow

User-friendly and ergonomic

  • Available in 5 languages: English, French, Italian, German and Spanish
  • Function block programming is fun and very visual
  • Blocks simply organized by function for quick access
  • Help associated with each function block accessible at the click of a button
  • Programming langages: FBD (Function Bloc Diagram) and SFC (Sequential Function Chart/Grafcet) or LD (Ladder Diagram)

Pre-programmed application blocks

See a few samples below

Pump Management

Level Control

Sunset/Sunrise Timer

Flow Control

Solar Tracking

Pool Filtration

Create and simulate your program
Even if you don't have the product...yet

Try it now!

It's FREE

Learn More Download it NOW

Get to know the offer

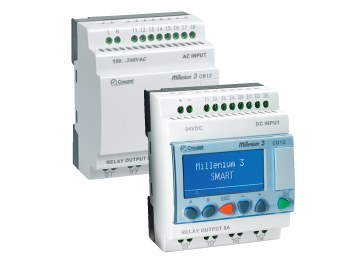

Compact Version

With Screen / Without Scren

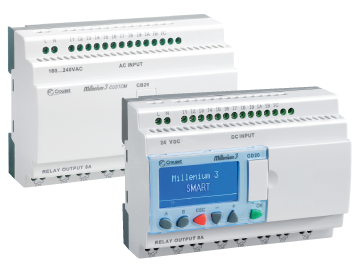

Expandable Version

With Screen / Without Scren

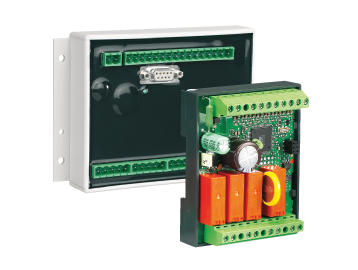

Special Products

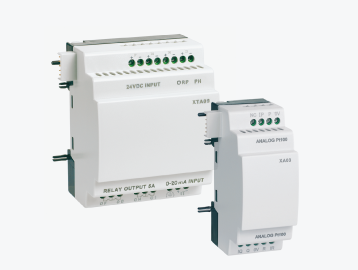

Expansion Modules

SEE FULL OFFER

Smart Compacte
Type Description Part Number
CD12 Smart Millenium 3 Smart CD12, 8 Inputs, 4 Relay Outputs, 24 VDC 88974041
Millenium 3 Smart CD12, 8 Inputs, 4 Solid State Outputs, 24 VDC 88974042
Millenium 3 Smart CD12, 8 Inputs, 4 Relay Outputs, 230 VAC 88974043
Millenium 3 Smart CD12, 8 Inputs, 4 Relay Outputs, 24 VAC 88974044
Millenium 3 Smart CD12, 8 Inputs, 4 Relay Outputs, 12 VDC 88974045
Millenium 3 Smart CD12, 8 Inputs, 4 Solid State Outputs, 12 VDC 88974046
Millenium 3 Smart CD12 RBT 8 Inputs, 4 Relay Outputs, 24 VDC 88974441
CB12 Smart Millenium 3 Smart CB12, 8 Inputs, 4 Relay Outputs, 24 VDC 88974021
Millenium 3 Smart CB12, 8 Inputs, 4 Relay Outputs, 230 VAC 88974023
Millenium 3 Smart CB12, 8 Inputs, 4 Relay Outputs, 24 VAC 88974024
Millenium 3 Smart CB12, 8 Inputs, 4 Solid State Outputs, 12 VDC 88974026
CD20 Smart Millenium 3 Smart CD20, 12 Inputs, 8 Relay Outputs, 24 VDC 88974051
Millenium 3 Smart CD20, 12 Inputs, 8 Solid State Outputs, 24 VDC 88974052
Millenium 3 Smart CD20, 12 Inputs, 8 Relay Outputs, 230 VAC 88974053
Millenium 3 Smart CD20, 12 Inputs, 8 Relay Outputs, 24 VAC 88974054
Millenium 3 Smart CD20, 12 Inputs, 8 Relay Outputs, 12 VDC 88974055
CB20 Smart Millenium 3 Smart CB20, 12 Inputs, 8 Relay Outputs, 24 VDC 88974031
Millenium 3 Smart CB20, 12 Inputs, 8 Relay Outputs, 230 VAC 88974033
Millenium 3 Smart CB20, 12 Inputs, 8 Relay Outputs, 24 VAC 88974034
Smart Extensible
Type Description Part Number
XD10 Smart Millenium 3 Smart XD10, 6 Inputs, 4 Relay Outputs, 24 VDC 88974141
Millenium 3 Smart XD10, 6 Inputs, 4 Solid State Outputs, 24 VDC 88974142
Millenium 3 Smart XD10, 6 Inputs, 4 Relay Outputs, 230 VAC 88974143
Millenium 3 Smart XD10, 6 Inputs, 4 Relay Outputs, 24 VAC 88974144
XB10 Smart Millenium 3 Smart Xb10, 6 Inputs, 4 Relay Outputs, 24 VDC 88974131
Millenium 3 Smart Xb10, 6 Inputs, 4 Solid State Outputs, 24 VDC 88974132
Millenium 3 Smart Xb10, 6 Inputs, 4 Relay Outputs, 240 VAC 88974133
Millenium 3 Smart Xb10, 6 Inputs, 4 Relay Outputs, 24 VAC 88974134
XD26 Smart Millenium 3 Smart XD26, 16 Inputs, 10 Relay Outputs, 24 VDC 88974161
Millenium 3 Smart XD26, 16 Inputs, 10 Solid State Outputs, 24 VDC 88974162
Millenium 3 Smart XD26, 16 Inputs, 10 Relay Outputs, 240 VAC 88974163
Millenium 3 Smart XD26, 16 Inputs, 10 Relay Outputs, 24 VAC 88974164
Millenium 3 Smart XD26, 16 Inputs, 10 Relay Outputs, 12 VDC 88974165
Millenium 3 Smart XD26, 16 Inputs, 10 Solid State Outputs, 12 VDC 88974166
Millenium 3 Smart XD26 RBT 16 Inputs, 10 Relay Outputs, 24 VDC 88974561
XB26 Smart Millenium 3 Smart XB26, 16 Inputs, 10 Relay Outputs, 24 VDC 88974151
Millenium 3 Smart XB26, 16 Inputs, 10 Solid State Outputs, 24 VDC 88974152
Millenium 3 Smart XB26, 16 Inputs, 10 Relay Outputs, 240 VAC 88974153
Millenium 3 Smart XB26, 16 Inputs, 10 Relay Outputs, 24 VAC 88974154
Millenium 3 Smart XB26, 16 Inputs, 10 Relay Outputs, 12 VDC 88974155
Essential Compacte
Type Description Part Number
CD12 Essential Millenium 3 Essential CD12, 8 Inputs, 4 Relay Outputs, 24 VDC 88970041
Millenium 3 Essential CD12, 12 Inputs, 8 Solid State Outputs, 24 VDC 88970042
Millenium 3 Essential CD12, 8 Inputs, 4 Relay Outputs, 12 VDC 88970045
Millenium 3 Essential CD12S 12 VDC 88970865
CB12 Essential Millenium 3 Essential CB12, 8 Inputs, 4 Relay Outputs, 24 VDC 88970021
Millenium 3 Essential CB12, 8 Inputs, 4 Solid State Outputs, 12 VDC 88970840
CD20 Essential Millenium 3 Essential CD20, 12 Inputs, 8 Relay Outputs, 24 VDC 88970051
Millenium 3 Essential CD20, 12 Inputs, 8 Solid State Outputs, 24 VDC 88970052
Millenium 3 Essential CD20, 12 Inputs, 8 Relay Outputs, 12 VDC 88970055
CB20 Essential Millenium 3 Essential CB20, 12 Inputs, 8 Relay Outputs, 24 VDC 88970031
Millenium 3 Essential CB20, 12 Inputs, 8 Solid State Outputs, 24 VDC 88970806
Essential Extensible
Type Description Part Number
XD10 Essential Millenium 3 Essential XD10, 6 Inputs, 4 Relay Outputs, 24 VDC 88970141
Millenium 3 Essential XD10, 6 Inputs, 4 Solid State Outputs, 24 VDC 88970142
XB10 Essential Millenium 3 Essential Xb10, 6 Inputs, 4 Relay Outputs, 24 VDC 88970131
Millenium 3 Essential Xb10, 6 Inputs, 4 Solid State Outputs, 24 VDC 88970132
XD26 Essential Millenium 3 Essential XD26, 16 Inputs, 10 Relay Outputs, 24 VDC 88970161
Millenium 3 Essential XD26, 16 Inputs, 10 Solid State Outputs, 24 VDC 88970162
Millenium 3 Essential XD26, 16 Inputs, 10 Relay Outputs, 12 VDC 88970165
XB26 Essential Millenium 3 Essential XB26, 16 Inputs, 10 Relay Outputs, 24 VDC 88970151
Millenium 3 Essential XB26, 16 Inputs, 10 Solid State Outputs, 24 VDC 88970152
Millenium 3 Essential XB26, 16 Inputs, 10 Relay Outputs, 12 VDC 88970155

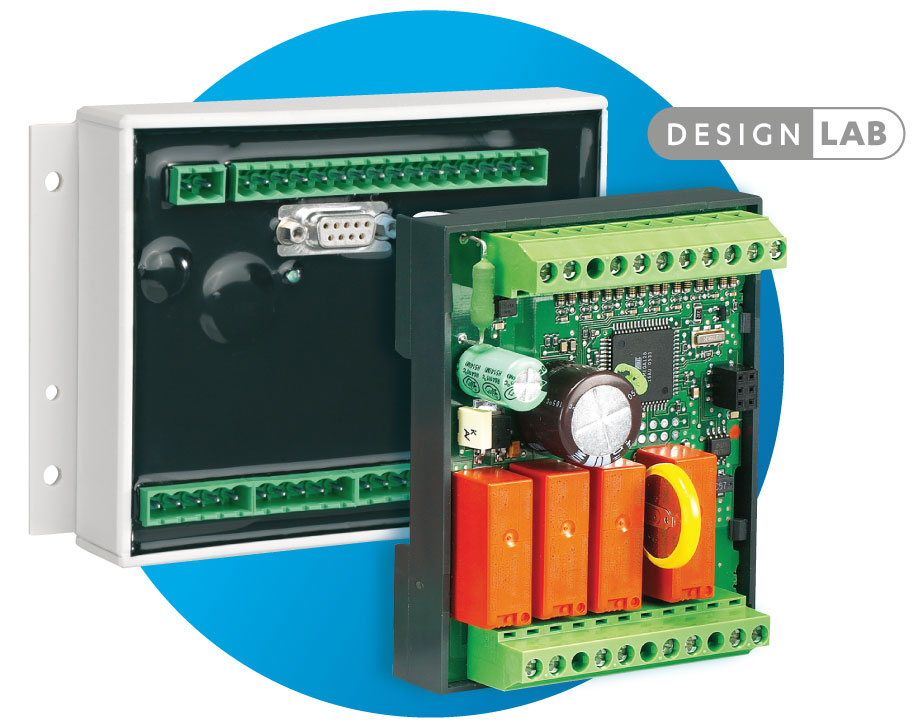

Need even more?

We can customize the product & the software for you

Crouzet’s DesignLAB is available to support OEMs with large volume automation projects where an adapted or customized solution will save money and/or enhance functionality. We can match your specific requirements and provide the solution you need; contact your local account manager to start the conversation!
